ReMicA
The ReMicA unit is part of GSM Lift Watch Voice and GSM Lift Watch Voice 3G.
Allows multiple wires to be connected in parallel, eg for communication under the cab and above the elevator car.
ReMicL units can not be combined with ReMic Box units.
ReMicA is designed to connect signaling to LCD panel or bulbs and LEDs with external power (switches against ground)
Basic features of ReMicA:

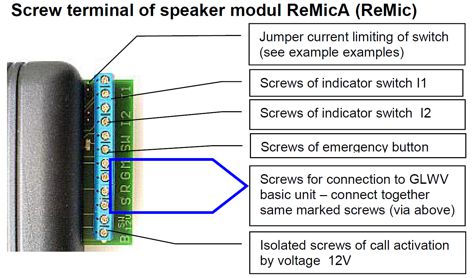

- Connection to the system is identical to that of ReMic
- Can be combined with ReMicL, ReMicA, ReMicB (together up to 3pcs of ReMic X)
- Built-in microphone and speaker
- The output for the indication can be used for bulbs, LEDs, LCD panel with logic inputs (no internal indication in the ReMicA box)
- The outputs of the display can be limited by Jumper current - to use LEDs
- Operation and status indication EN 81-28
- Button activation input
- Input for voltage activation
- When using the PREPOJ module in the engine room, the possibility of communication between the engine room and all ReMicX
ReMicA units can be connected in parallel and can not be combined with ReMic Box.
