GLW - GSM communicator - Alphatech (en)

Features

• After activation ( button push) progressively call up 8 numbers (MASTER1-8) saved on the SIM card with automatic call duration max. 4 minutes


• Back call only from MASTER numbers saved on SIM card.Another calls are refuse


• Credit information at prepaid SIM cards.


• Information is sent by SMS to selected number


• Indication of calling as same as connection


• Automatic verification call once for 3 days to TEST number(s) (TEST1-8) saved on the SIM card


• Command SMS mode for remote control (SMS might be sent only from TEST numbers):


Control of 2 relay contacts for lift reset
Status of the lift (5 inputs – 2 are blocking inputs)
MASTER and TEST numbers changing
Control of GSM network status
Credit information

• 2 blocking inputs – emergency call available only during lift failure


• 2 blocking inputs might be used for sending SMS with info about lift failure (failure signal on input longer than 2 minutes)


• Sending of preprogrammed SMS when is lift failure – SMS is sending during change of input status longer than 2 minutes

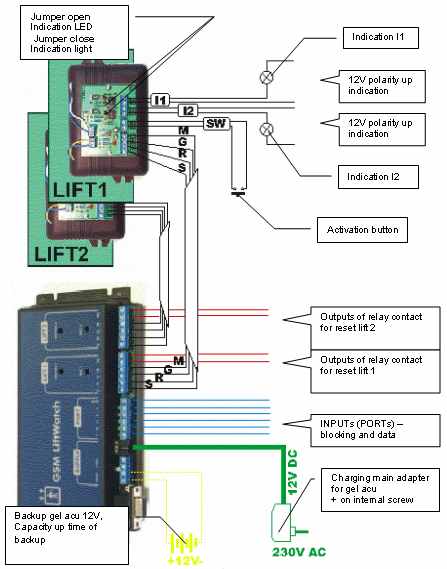

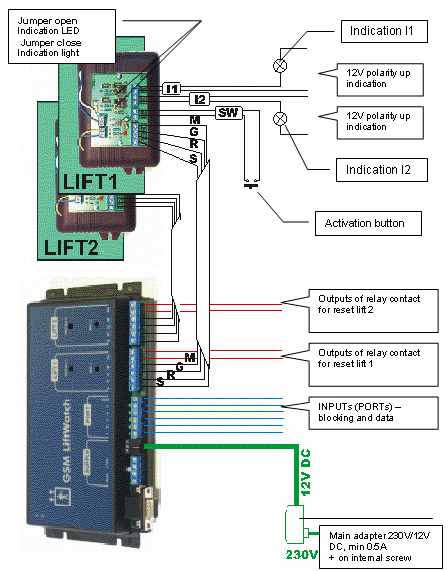

Example of connection
