Connection
The IP BOLD includes basic board differently equipped. To the basic board is possible connect 1 or 2 button boards. Further is possible connect keypad in version TK.
UTP cable connection (Ethernet, LAN,net)
The basic board is the same for all models of IP BOLD door entry. The difference is just camera module ( with or without). The PoE modul is in standard (according directive IEEE802.3af) as same as connectors for button and keypad connection , MicroSD card reader and 2 relays (first relay has switchable contact [NO COM NC] and second relay has closing contact only [NO COM]).

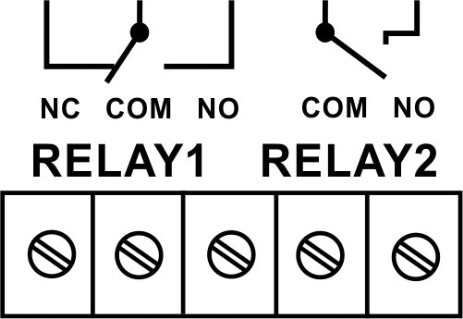

Marking "NO" menas in stand by open contact, "COM" means shared output (middle) and "NC" means in stand by closed contact. Contacts of both relays are mutually galvanically isolated as same as isolated from othe IP Bold components.
It is recommended use for IP BOLD PoE powering (according directive IEEE802.3af) or AC voltage min.11input - max.15input or DC voltage min.12Vss - max.18Vss. which is connected to screw "12V". The IP BOLD consumption is max.300mA. This powering is possible simultaneously use for electrical lock(s) feeding. Then you have to consider el.lock consumption. In practise mostly used is AC / DC power supply 12V/1A÷2A
The IP BOLD is equiped by circuit for powering via UTP cable – PoE. When you have IP switch with PoE, or you have PoE PSU (box of adapter size inserted into UTP cable input – according directive IEEE802.3af) then you dont need extra 12V PSU for door entry powering.

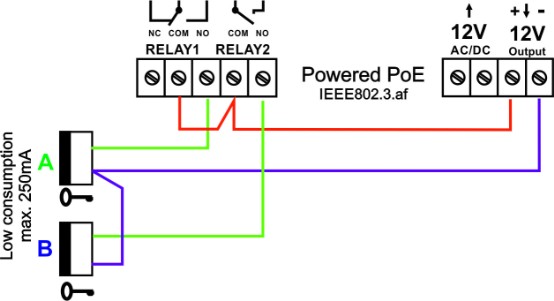

When you use electrical lock for door opening then you have to use PSU for powering of door electrical lock (in relays contacts circuit only), or use low consumption electrical lock and for electrical lock powering use output screw „12V output” (7). When is used PoE then 12V/300mA is available.
!! CAUTION: There must not be activated both electrical locks simultaneously.
It might be reached for example by relays synchronization and setup progressive door opening (setting is descriped in follow capture relays setting)
