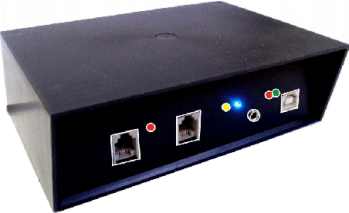

BlackBox - DTMF modem with CLIP - Alphatech (en)

Features
Black Box is unit inserted into analogue line enables:

• ending of external line (active), as external line card in the PBX


• ending of internal line (pasive), as extension in the PBX


• detects and generates ringing signal


• generates acoustic signalling


• detects DTMF CLIP as same as FSK CLIP in format Bell even BT


• generates DTMF CLIP as same as  FSK CLIP in format Bell


• detects and generates DTMF dial


• pulse dialling is not supported


• support internal connection (by cross point as in PBX)  connection external and internal  line with detection of DTMF dial


• support external ( real connection by relay contacts) connection external and internal line with detection of line ON HOOK


• play – record message particularly for internal and external line (max.2x10sec)


• all operation parametres are adjustable and saved in EEPROM memory.


• 2 operation modes – NORM which is full control via USB port, - AUTO which is automatic operation with sending of events to PC via USB port
