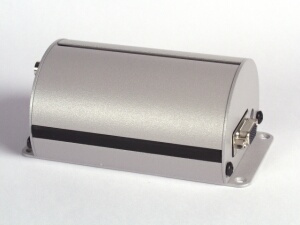

AlphaGuard - Alphatech (en)

Features

• GSM module TC35 or MC35 900/1800 MHz


• Power supply 9 to 15V ss


• 5 programmable ports of processor (inputs/outputs, pulses, etc. Up used software) 5V/10mA


• serial input and output of GSM modem with 3V levelvoice input and output cca 100mV at connector is possible connect optional modules (voice module, monitoring (overhear) module, relay module etc.)


• transmit DTMF tones after connecting


• detection of tones after connecting (busy tone, ringing tone etc.)


• Real time clock


• Timer (alarm)


Applications
he type of application is limited by software in processor:
GSM invoker: inputs are not used. During ringing from "list of permitted numbers" stored on SIM card you make an alarm. Then are progressively calling "invo stored on SIM card - invoking call is free charge (Suitable for example:fire department).
Alarm-Guard mode : device is equipped by 4 inputs (states) - for each you can programm own SMS with telephone number. In case of state changing is sent corresponding SMS to preprogrammed number. Simoultenously (up setting) call (ringing - warning free charge) up 8 preprogrammed numbers. When you connect optional modules you can monitor guarded area.
Remote control mode : 2 inputs in Guard mode and 3 outputs can be used for connection different types of devices (relay for switching). It can be used for monitoring as well.
Remote data collection - the integrated processor can scanning for example: pulses from different measurements and send measured values back on line.
This device will step by step developer another accessories according needs user: remote controlled switch AlphaGuard relais

Vlastnosti

• ALPHAGUARD relay was developed specially like a supplement for expansion option inputs and outputs system ALPHAGUARD.


• 2 inputs with possibility of optical isolation (adjustable up jumper setting)


• 2 outputs with contacts of relay 48V/10A


• power supply 9 to 15V ss share with AlphaGuard (relay is possible powered from Alphaguard or Alphaguard from relay)
