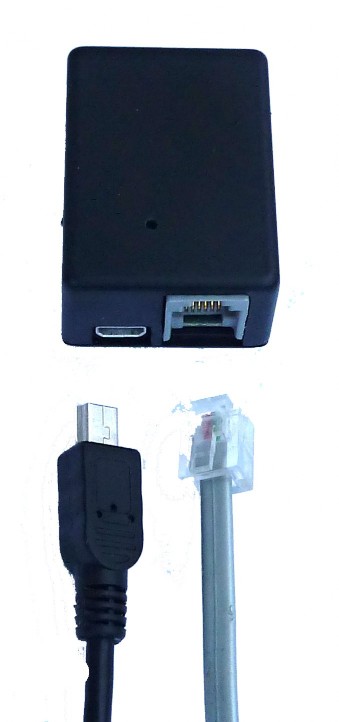

BlueGate analog Brave

GSM gate analog with posibilities backup 12 accumulator, Gate for quad frequencies band

Features

  • Dimensions 100mm x 130 mm x 37 mm

  • 8-12VAC/DC Supply, 500 mA

  • additional back-up battery for about 12 hours of operation

  • BlueGate is the normal state properties of lines

  • operation on 850/900/1800/1900MHz frequencies

  • Additional USB interface for use as a GSM modem (data, SMS program, SMS, Mail, etc.)

  • parameter setting as the gate with your phone and PC (via USB accessory)

  • tariffication 16/12 KHz

  • CLIP FSK

  • Dial DTMF tone t> 30 ms

  • change the polarity on the line when they establish / terminate the connection

  • backward compatibility with MiniGate

Functions

  • 9 memories of allowed directions call

  • DTMF INBAND / OUTBAND

  • enable / disable roaming

  • Limitation of call duration

  • Timestamps in the call

  • Sending SMS to a preset telephone number to fall below a specified threshold power, lasting longer than a specified amount of time

  • Sending SMS to a preset telephone number each time you log on to the GSM network

  • Sending SMS to a preset telephone number at more than a set number of rings the gateway (for calls) without picking up

  • Sending SMS to a preset telephone number when changing the input lasting longer than a specified time (optional expansion - board inputs)

  • Periodic sending SMS status in the selected interval 1-30 days. SMS includes: time and date of departure (the time set on the clock gate - Local / GSM), GSM network status, voltage supply, temperature, GSM module, the last number dialed. (Optional extension - a program through)

21.4.2017PDF596 KB
31.8.2015ZIP504 KB
19.12.2013PDF340 KB
17.5.2012LeafletPDF355 KB
