Introduction

  • Announcing of messages in several languages
  • Include SD-card with all message and firmware and settings (up to 2GB)
  • To record your own message can be used
    • SD-card reader
    • PC with USB (without driver – mass storage)
    • Optionally Ethernet connection (remote - long distance)
  • Possibility change firmware, setting and message by using SD-card reader, by using PC with USB (without driver – mass storage), optional by using ethernet connection (remote - long distance)
  • Floor annunciation
  • Gong simulation
  • Easy setting
  • High quality of voice
  • Possibility to record your own messages - WAV files (16bit, 14KHz sample) practically isn't limitation of the number of messages and duration of message look to large capacity SD-card

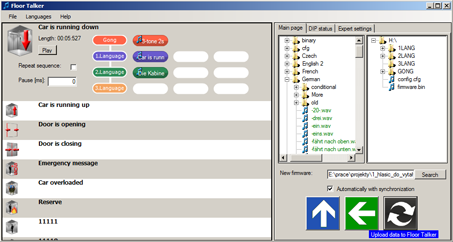

  • PC program with all function for SD-card record, USB connection or Ethernet connection with floor talker.
  • Type of announcements:
    • “door is closing“
    • “next direction of movement …up“,
    • “cabin overloaded“
    • “lift is in fire service”

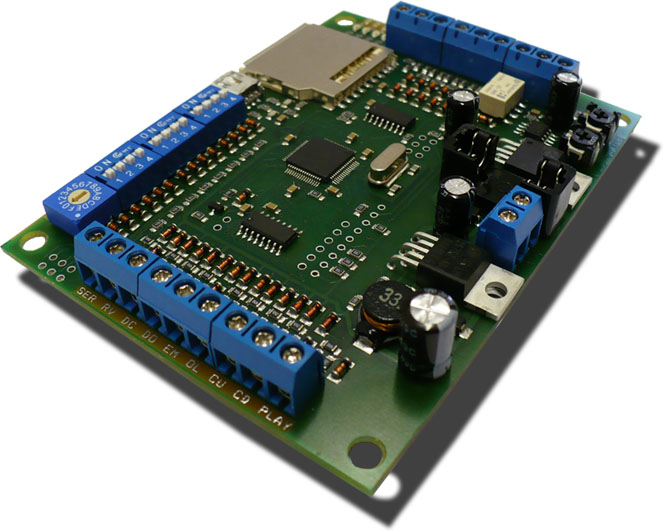

  • 4 LED indication for easy install
  • 4 DIP switch for easy install – the lowest floor selection, language selection, input code selection, basic mode section (gong, move of cabin, open/close door)
  • Dimensions: 105 x 90 x 25mm
  • Power supply: DC 10-30V / max 200mA, minus is common
  • Output power: 1W / 8ohms
  • you use speaker in cabin or speaker in Remic or NLLW, output of Floor Talker is through relay, board have connector speaker in, speaker out
  • Input - serial or binary (parallel) - in default is 8 typical input codes and step by step want to support encoding for another switchboard from different producers
  • Input levels 0-2V = "0" 8-24V = "1", active is "0", pull up resistors - 22Kohm

Miroslav Dusek & dusek@alphatech.cz
