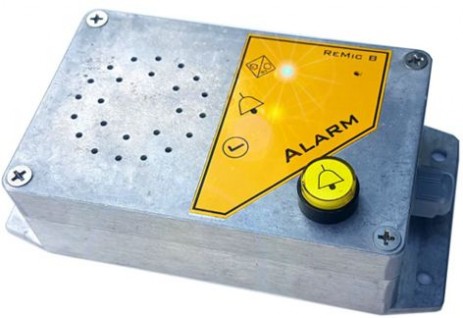

ReMicB
The ReMicB unit is part of GSM Lift Watch Voice and GSM Lift Watch Voice 3G.
ReMicA differs from mechanically resistant box and only internal LED signaling.
Allows multiple wires to be connected in parallel, eg for communication under the cab and above the elevator car.
ReMicB units can not be combined with ReMic Box units.
ReMicB is mainly designed for installation into the shaft (under / over the cabin) and has no signaling (the LED sign is on the box)
Basic features of ReMicB:
- Connection to the system is identical to that of ReMic
- Can be combined with ReMicL, ReMicA, ReMicB (together up to 3pcs of ReMic X)
- Built-in activation button
- Built-in microphone and speaker
- Built-in LED indication
- Operation and status indication according to EN 81-28
- Terminal board for external pushbutton
- Input for voltage activation
- When using the PREPOJ module in the engine room, the possibility of communication between the engine room and all ReMic
- ReMicB is not equipped with an LED display output (internal LED only in the box)
ReMicB units can be connected in parallel and can not be combined with ReMic Box.

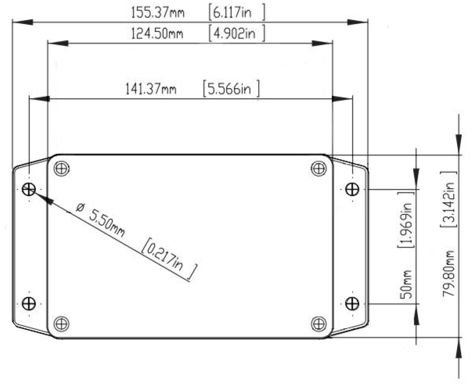

Dimensions

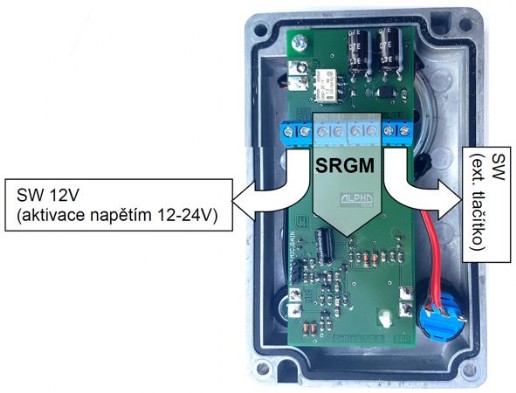

Connections ReMicB
